| Model |

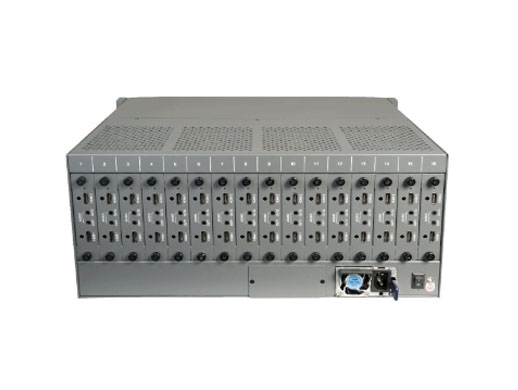

UMC7300 |
| Physical |
| output |
16ch hdmi output, Up to 32ch HDMI by one chassis |
Input |
Optional HDMI Input cards
Type #1 : 4 ch ( each support 4K inputs )
Type #2 : 1 Ch input and 1 Ch ouput |
| HDMI output resolution |
1024×768P@60Hz,1280×720P@60Hz, 1366×768P@60Hz, 1920×1080P@30Hz, 3840×2160@30Hz |
| Video |
| Video decoding |
H.265,H.264 |
| Video stream resolution |
4K,1080P,1080I,720P,D1 |
| Decoding capability |
Every HDMI output can decode 2ch 4K or 8ch 1080p or 16ch 720p or 32ch D1. |
| Splicing |
32, up to 32 by one chassis, maximum 64 by 2 chassis cascading, it can splice the monitors connected on HDMI output. user-defined splicing. |
| Splitting |
1/4/6/8/9/16/25/64, and user-defined splitting |
| Windowing and Cruise |
support, it can set windowing on monitors to have maximum 128 layers' windowing. |
| OSD display |
it can display OSD info. including window number, channel number, label, etc. |
| Audio |
| encoding and decoding standard |
support G.711, G.726, ADPCM |
| Audio enable/mute |
it can turn on all audio and it can set one channel by quick operation. |
| input |
support audio embedded in HDMI input or individual input. |
| Maintenance |
| Basic applications |
multiple user log in and log out, maximum 72 users on-line at same time. operation permission definition; Supports video switching and controlling. |
| Support Segmentation display mode management. |
| Automatic inspection, setting and call. Supports rollback playing. |
| System management and configuration |
PETNET protocol available, once integration,the third party can manage this decoder, configuration upload and reload, operation permission setting and management |
| Maintenance |
system log available. |
| Fault detection and report. |
| support online updating. |
| Port and connectors |
| Ethernet |
6ch, 1000Mbps adaptive RJ45 port，1 master and 5 slave |
| Audio input |
No physical input of audio |
| Audio output |
8ch, one modular with 1 audio output of Ф3.5 socket |
| RS232 |
1 |
| Other functions |
| Second development |
support, SDK available |
| Time synchronization |
internal RTC, it support automatic time sync. for multiple device. |
| offers PENET protocol, it can synchronize time of time server. |
| Alarm input |
support network alarm info. access. |
| Alarm process |
support automatic or manual alarm process. |
| Monitor control |
offers control port of monitor to control the monitors. |
| Stream self-adaptive |
Support stream self-adaptive function, it can close this function, it can automatically choose main/sub stream to output to monitors. |
| Stream media forwarding |
embedded Stream media forwarding, one camera takes steam one time. |
| smooth playing function |
support smooth playing function, it can automatically adjust and optimize stream stuck or pause caused by network transmission. |
| Decoding delay |
150ms maximum |
| Power supply |
AC100V～230V. |
| optional to have second power supply modular for stand by. |
| Power consumption |
190W |
| Working temperature |
0～50℃ |
| Working humidity |
10%～90%； |
| Dimension |
480.0mm(W)×360.0mm（D）×190.0mm（H） |
| Weight |
12KG |
