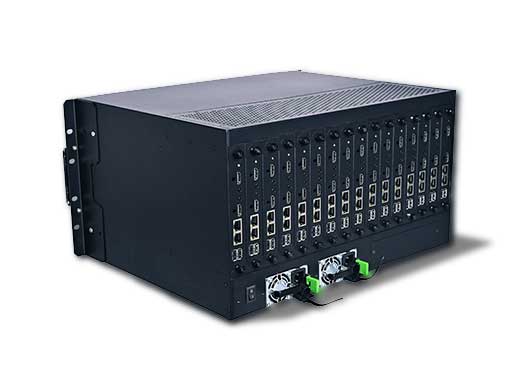

| Model |
UMC7000 |
| HDMI input |
Optional,
1CH/4CH HDMI input per card, support 4K video input |
| HD SDI input |
Optional,
1CH HD SDI input per card, support 1080p |
| BNC input |
Optional,
8CH BNC input per card, support CVBS, TVI,CVI & AHD |
| HDMI output |
2CH
per card, odd port support 4K output |
| Ethernet |
100M/1000M adaptive
RJ45 port |
| Audio input |
1ch ,Ф3.5 earphone socket . |
| Audio output |
1ch ,Ф3.5 earphone socket . |
| Alarm output |
support
(rack construction) |
| USB2.0 |
support |
| RS232 |
support |
|
|
| Network
video decoding |
H.265,H.264 |
| Network video input |
4K,1080P,1080I,720P,D1 |
| HDMI output resolution |
1024×768P@60Hz,1280×720P@60Hz, |
| 1366×768P@60Hz,1920×1080P@60Hz, |
| 3840×2160@60Hz |
| Video decode and display |
one
module support 4ch 4K or 16ch 1080P@30hz or 32ch 720P or 64ch D1 |
| Monitor splicing |
48
monitor splicing( rack construction) |
| Monitor splitting and display |
Support
4/9/16/25/32/48/64 splitting and display |
| OSD |
Supports Chinese/English OSD
character superposition; |
| Time display, Monitor No. display. |
Support titles overlaying,
Maximum 16 titles overlay in one screen,
maximum 40 characters per title; |
| Alarm information display.; |
| Audio Codec |
G.711,G.726,ADPCM Audio encode/decode. |
| On/Mute |
Supports all
channels and single channel quick setting
individually. |
| Audio input |
one
module support 1CH audio encode, it can be set to open/close audio input. |
|
|
| Basic
function |
Multi-user login/logout,
Maximum supports 72 users online at same time, operation permission
definition; Supports video switching and controlling. |
| Support Segmentation display mode management. |
| Automatic inspection, setting and call. Supports rollback playing. |
| System management and configuration |
PETNET
protocol available, support web configure, configuration upload and reload,
operation permission setting and management |
| Maintenance |
system
log available. |
| Fault detection and report. |
| support online updating. |
|
|
| Time
synchronization |
interior RTC,
it could time automatic synchronization, offer standard port, to keep sync.
To time server inside the system. |
| Alarm input |
support
network alarm input |
| Alarm output |
one
module can provide with 1CH alarm switching value output and network alarm
output |
| Alarm Processing |
Multiple
alarm event processing mode |
| Screen control |
video
screen control port available; |
| best resolution identification |
support
best resolution identification |
| Power supply |
one
module Power supply: DC 12V
chassis power supply: AC 220 |
| Power consumption |
one
module 15W |
| Working temperature |
0～55℃ |
| Working humidity |
10%～90%； |
| Structure |
standard
structure design |
