| Model |
UFG2269 |
| Specification |
| Caninet Material |
Standard 304 stainless metal, whole caninet thickness 1.5mm |
| Drive Voltage |
AC220V±10%，50HZ/60HZ |
| Motor Type |
Brushless/Servo Brushless |

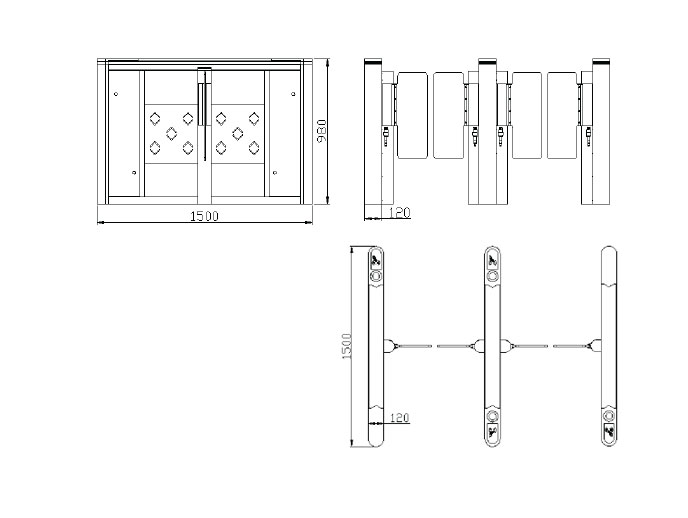

| Outline Dimension |
1500mm(L)*120MM(W)*980MM(H) |
| Flap Wing Length |
300mm-450mm |
| Optional Pass Width |
600mm-900mm |
| Pass Direction |
Single or dual |
| Response Time |
0.2-0.8s |
| Pass Speed |
45 persons/minute |
| Communication Port |
RS485, distance ≤1200m |
| Input Port |
Relay command signagel or |
| 12V level signal or |
| pluse width signal ＞100ms |
| 12 Vpluse signal, drive current ＞10MA |
| MTBF |
8 Million—10 Million cycles |
