IPC2860-UHN-PIR15 |
| Camera |
| Image Sensor |
1/1.7’’
progressive scan CMOS |
| Pixels |
8
Megapixel |
| Min. Illumination |
Color:
0.05lux@ (F2.0, AGC ON) |
| B/W: 0lux
with IR |
| Shutter Speed |
1
~ 1/30,000s |
| Day / Night |
Auto
(ICR) / Color / B/W |
| Wide Dynamic Range |
Digital
WDR |
| S/N Ratio |
>50dB |
| White Balance |
Auto
/ Manual |
| Gain Control |
Auto
/ Manual |
| Backlight Compensation |
Off
/ BLC / WDR / HLC |
| Lens |
| Mount Type |
M12 |
| Focal Length |
1.85mm
(-L0185) |
| Angle of View |
-L0185:
180° |
| Infrared |
| IR Distance |
15m |
| IR Intensity |
Smart
IR |
| Video |
| Compression |
H.265
/ H.264 |
| Image Resolution |
Main
stream: 3264×2448 |
| Secondary stream: D1 |
| Frame Rate |
Main
stream: 3264×2448@25fps, 1080p@30fps |
| Secondary stream: D1@30fps |
| Bitrate |
32kbps
~ 16Mbps |
| Bitrate Control |
VBR
/ CBR |
| Multi-stream |
Supported |
| Caption |
Date
and time / Alarm / Customized |
| Privacy Masking |
Up
to 4 zones |
| Motion Detection |
Up
to 4 zones |
| Video Freeze |
Supported |
| ROI |
Supported |
| Digital Noise Reduction |
3D
noise reduction |
| Digital Defog |
Supported |
| Image Flip |
Flip
/ Mirror / Rotation at 180° |
| Audio |
| Compression |
G.711a
/ G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726 |
| Bitrate |
32kbps
~ 64kbps |
| Audio Function |
AEC
/ Dumb |
| Network |
| Network Protocols |
TCP/IP,
UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x,
NAT, QoS, SMTP, IPv4, IPv6 (optional) |
| User Interface |
IPC
Control (IE, Firefox, Chrome) |
| Max. User Access |
Max.
10 Users (includes 2 internal) |
| Application Programming |
ONVIF
(Profile S, Profile G), GB/T 28181-2011, API, CGI |
| Automatic Network Replenishment (ANR) |
Supported |
| Alarm |
| Alarm Triggers |
Network
disconnect / Disk full / Disk error |
| Intelligent |
Motion
detection / Tampering / Guard line / Enter guard area / Exit guard area |
| Alarm Events |
Alarm
report / Recording / Text overlay / Snapshot / Email notice |
| Interfaces |
| Ethernet |
10/100M,
RJ45 interface |
| Memory Slot |
Micro
SD card slot, supports up to 256GB |
| Environmental |
| Operating Temperature |
-40°C
~ 70°C / -40°F ~ 158°F |
| Operating Humidity |
10%
~ 95% |
| Protection Level |
IK10+
@50J, IP67 |
| Electrical |
| Power |
DC12V
± 10% / PoE (IEEE802.3at) |
| Power Consumption |
Max.
20W |
| Mechanical |
| Weight |
0.5
kg / 1.1lb (Gross Weight) |

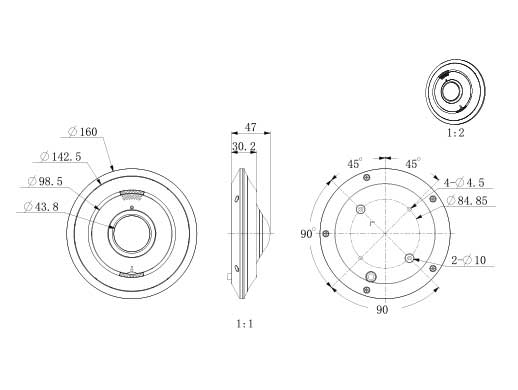

| Dimensions |
Φ160×
47mm / Φ6.30’’ x 1.85’’ |
