IPC2240-UHN-P |
| Camera |
| Image Sensor |
1/3’’
progressive scan CMOS |
| Pixels |
2.0
Megapixel |
| Min. Illumination |
Color:
0.03lux @ (F1.6, AGC ON) |
| B/W: 0.003lux @ (F1.6, AGC ON) |
| Shutter Speed |
1
~ 1/30,000s |
| Day / Night |
Auto
(ICR) / Color / B/W |
| Wide Dynamic Range |
Digital
WDR |
| S/N Ratio |
>50dB |
| White Balance |
Auto
/ Manual |
| Gain Control |
Auto
/ Manual |
| Backlight Compensation |
Off
/ WDR / BLC / HLC |
| Lens |
| Mount Type |
M12 |
| Focal Length |
2.1mm
(-L0210) |
| Angle of View |
143.3°
(-L0210) |
| Adjustment Range |
Pan:
-102.5° ~ 102.5° / Tilt: 0° ~ 70° |
| Video |
| Compression |
H.265
/ H.264 / MJPEG |
| Image Resolution |
Main
stream: 1080p |
| Secondary stream: D1 |
| Frame Rate |
Main
stream: 1080p@30fps |
| Secondary stream: D1@30fps |
| Bitrate |
32kbps
~ 16Mbps |
| Bitrate Control |
VBR
/ CBR |
| Dual-stream |
Supported |
| Caption |
Date
and time / Alarm / Customized |
| Privacy Masking |
Up
to 4 zones |
| Motion Detection |
Up
to 4 zones |
| Video Freeze |
Supported |
| ROI |
Supported |
| Digital Noise Reduction |
3D
noise reduction |
| Digital Defog |
Supported |
| Image Flip |
Flip
/ Mirror / Rotation at 90°, 180°, 270° |
| Audio |
| Compression |
G.711a
/ G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726 |
| Bitrate |
32kbps
~ 64kbps |
| Audio Function |
AEC
/ Dumb |
| Network |
| Network Protocols |
TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, IGMP, VSIP, UPnP, 802.1x, NAT, QoS,
SMTP, IPv4, IPv6 (optional) |
| User Interface |
IPC
Control (IE, Firefox, Chrome) |
| Max. User Access |
Max.
10 Users (includes 2 internal) |
| Application Programming |
ONVIF
(Profile S, Profile G), GB/T 28181-2011, API, CGI |
| Automatic Network Replenishment (ANR) |
Supported |
| Alarm |
| Alarm Triggers |
Network
disconnect / Disk full / Disk error |
| Intelligent |
Motion
detection / Tampering / Guard line / Enter guard area / Exit guard area |
| Alarm Events |
Alarm
report / Recording / Text overlay / Snapshot / Email notice |
| Interfaces |
| Ethernet |
10/100M,
RJ45 interface |
| Audio In / Out |
1
x Built-in Mic |
| Memory Slot |
Micro
SD card slot, supports up to 128GB |
| Environmental |
| Operating Temperature |
-40°C
~ 60°C / -40°F ~ 140°F |
| Operating Humidity |
10%
~ 95% |
| Protection Level |
IK10 |
| Electrical |
| Power |
12V
DC ± 10% / PoE (IEEE802.3af) |
| Power Consumption |
Max.
11W |
| Mechanical |
| Weight |
0.5kg
/ 1.1lb (Gross Weight) |

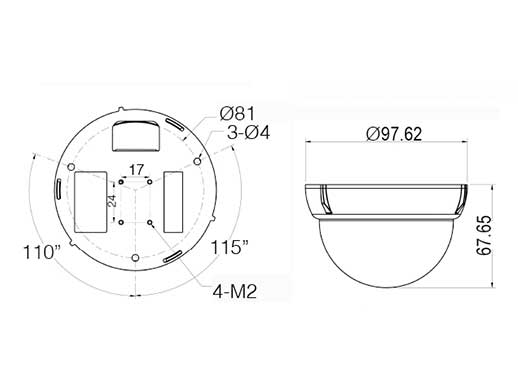

| Dimensions |
Φ97.62
× 67.65mm / Φ3.85’’ x 2.67’’ |
