PC4 |
| Basic
Parameter |
| Image Sensor |
1/4’’
progressive scan CMOS |
| Pixels |
5.0
Megapixel |
| Focal Length |
3.15mm |
| Angle of View |
Diagonal
160°, Horizontal 120° |
| Installation Height |
2.8m
~ 4.5m |
| Intelligent
Features |
| Target Detection |
Head
and shoulders |
| Target Filter |
Shopping
cart / Baggage |
| Statistical Method |
Counts
people entering and exiting separately |
| Detection Region |
1
zone |
| API |
CGI,
SDK |
| Detection Accuracy |
Up
to 92% (Laboratory data) |
| Network |
| Wi-Fi |
802.11
a/b/g/n 2.4G |
| Network Protocols |
TCP/IP,
UDP, HTTP, DHCP, DNS/DDNS, FTP, IGMP, IPv4 |
| User Interface |
Web
(IE, Firefox, Chrome) |
| Interfaces |
| Ethernet |
10/100M,
RJ45 interface |
| USB |
1
x Micro USB2.0 |
| Environmental |
| Operating Temperature |
-30°C
~ 60°C / -22°F ~ 140°F |
| Operating Humidity |
20%
~ 80% |
| Electrical |
| Power |
5V
DC ± 10% |
| Power Consumption |
Max.
10W |
| Mechanical |
| Weight |
0.15
kg / 0.33lb (Gross Weight) |

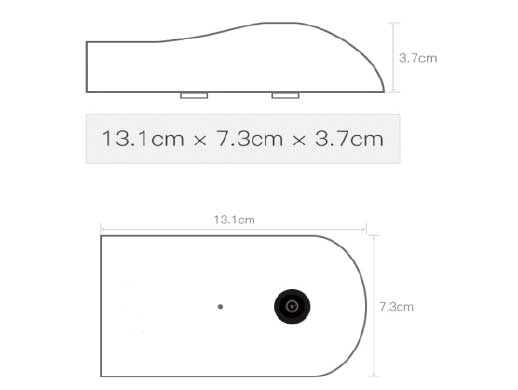

| Dimensions |
13.1
× 73 × 3.7mm / 0.52’’ x 2.87’’ x 0.15’’ |
