IPC2533-UFN-SIR50-L |
| Camera |
| Image Sensor |
1/2.8’’
progressive scan CMOS |
| Pixels |
5.0
Megapixel |
| Min. Illumination |
Color: 0.005lux@
(F1.6, AGC ON) |
| B/W: 0.0005lux@ (F1.6,
AGC ON); 0lux with IR |
| Shutter Speed |
1
~ 1/30,000s |
| Day / Night |
Auto
(ICR) / Color / B/W |
| Wide Dynamic Range |
Ultra
WDR, >=120dB |
| S/N Ratio |
>=58db |
| White Balance |
Auto
/ Manual |
| Gain Control |
Auto
/ Manual |
| Backlight Compensation |
Off
/ BLC / WDR / HLC |
| Lens |
| Mount Type |
M12 |
| Focal Length |
2.8mm@F2.0(-L0280)
\ 3.6mm@F1.4 (-L0360) / 6mm@F1.6 (-L0600) / 8mm@F2.0 (-L0800) |
| Angle of View |
-L0280:Horizontal:114.6°,Vertical:59.4°
-L0360:Horizontal:77.6°,Vertical:40.1°
-L0600:Horizontal:53.52°,Vertical:28.92°
-L0800:Horizontal:36.6°,Vertical:20.54° |
| Adjustment Range |
Pan:
-120° ~ +120° / Tilt: 0° ~ 65° / Rotation: -90° ~ +90° |
| Infrared |
| IR Distance |
50m |
| IR Intensity |
Smart
IR |
| Video |
| Compression |
Smart
265 / H.265(Main Profile) / H.264(BaseLine Profile/Main Profile/High Profile)
/MJPEG |
| Image Resolution |
Main stream:
3072x1728 |
| Secondary stream: 720P |
| Third stream: D1 |
| Frame Rate |
Main stream:
3072x1728@30fps / 3072x1728@25fps(with WDR on) |
| Secondary stream: 720P@30fps |
| Third stream: D1@30fps |
| Bitrate |
32kbps
~ 16Mbps |
| Bitrate Control |
VBR
/ CBR |
| Multi-stream |
Supported |
| Caption |
Date
and time / Alarm / Customized |
| Privacy Masking |
Up
to 4 zones |
| Motion Detection |
Up
to 4 zones |
| Video Freeze |
Supported |
| ROI |
Supported |
| Digital Noise Reduction |
3D
noise reduction |
| Digital Defog |
Supported |
| Image Flip |
Flip
/ Mirror / Rotation at 90°,180°,270° |
| Audio |
| Compression |
G.711a
/ G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726 |
| Bitrate |
32kbps
~ 64kbps |
| Audio Function |
Bi-directional
audio / AEC / Mixed audio recording / Dumb / Mute |
| Network |
| Network Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP,
DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP,IGMP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) |
| User Interface |
IPC Control
(IE, Firefox, Chrome) |
| Max. User Access |
Max.
20 Users (includes 2 internal) |
| Application Programming |
ONVIF
(Profile S, Profile G), GB/T 28181-2016, API, CGI |
| Automatic Network Replenishment (ANR) |
Supported |
| Alarm |
| Alarm Triggers |
Alarm
input / Network disconnect / Disk full / Disk error |
| Basic
Intelligent |
Tampering /
Defocus / Scene change / Object left / Object removal / Audio surge |
| Deep
Learning Intelligent |
Human
& Vehicle Detection:
Motion detection / Guard line /
Enter guard area / Exit guard area / People Gathering |
| Alarm Events |
Alarm
report / Recording / Text overlay / Snapshot / External output / Email notice
/ Acoustic alarm |
| Interfaces |
| Ethernet |
10/100M,
RJ45 interface |
| Audio In / Out |
1×Line
In，1×Line Out, 1 x Built-in
Mic in, 1 x Speaker |
| Control |
1
x RS485 |
| Alarm In / Out |
2
x Input / 1 x Output |
| Memory Slot |
Micro
SD card slot, supports up to 256GB |
| Environmental |
| Operating Temperature |
-40°C ~ 70°C / -40°F ~ 158°F |
| Operating Humidity |
10%
~ 95%,No condensation |
| Protection Level |
IP67,IK10+
@50J |
| Electrical |
| Power |
12V
DC ± 10% / PoE (IEEE802.3af) |
| Power Consumption |
Max.
12W |
| Mechanical |
| Weight |
0.71
kg / 1.57lb (Gross Weight) |

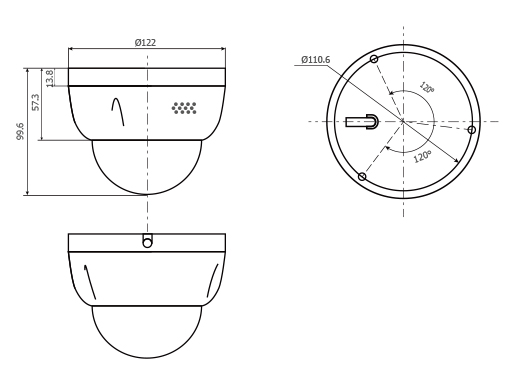

| Dimensions |
Φ122×
96.13mm / Φ4.8’’ x 3.78’’ |
IPC2533-UFN-SIR50-Z6022
IPC2533-UFN-SIR50-L0200
