IPC521-UH120-W |
| Camera |
| Image Sensor |
1/2.8’’
Progressive Scan CMOS |
| Pixels |
2.0
Megapixel |
| Min. Illumination |
Color:
0.003lux @ (F1.5, AGC ON) |
| B/W: 0.0003lux @ (F1.5, AGC ON); 0lux with IR |
| Shutter Speed |
1
~ 1/30,000S |
| Day / Night |
Auto
(ICR) / Color / B/W |
| Wide Dynamic Range |
Digital
WDR |
| S/N Ratio |
>50dB |
| White Balance |
Auto
/ Manual |
| Gain Control |
Auto
/ Manual |
| Backlight Compensation |
Off
/ WDR / BLC / HLC |
| Lens |
| Focal Length |
4.7
~ 94mm, 20x optical |
| Zoom Speed |
Approx
3s (Optical) |
| Angle of View |
54.1°~
2.9° (Wide~Tele) |
| Min. Object Distance |
300
~ 1500mm (Wide~Tele) |
| Max. Aperture Ratio |
F1.5
(Wide) / F3.5 (Tele) |
| Focus Control |
Auto
/ Manual / Semi-Automatic |
| Infrared |
| IR LED |
4pcs
IR LED Array |
| IR Distance |
40
~ 60m |
| IR Intensity |
Automatically
adjust according to zoom ratio |
| Pan and Tilt |
| Pan / Tilt Range |
360°
Endless / -15° ~ 90° (Auto Flip) |
| Pan / Tilt Speed |
Pan
manual speed: 0.1° ~ 30°/s; Pan preset speed: 40°/s |
| Tilt manual speed: 0.1° ~ 30°/s; Tilt preset
speed: 40°/s |
| Proportional Zoom |
Pan
/ Tilt speed can be adjusted automatically according to zoom multiples |
| Preset |
256 |
| Patrol |
8
Patrols scheme, up to 32 presets per patrol |
| Pattern Scan |
4
Scan paths, each path can record 10 minutes of operation path |
| Power-off Memory |
Power-off
memory / Power-on recovery |
| Auto Guard |
Path
/ Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama
scan |
| PT Limit |
Manual
/ Scan / Pan |
| 3D Positioning |
PTZ
control with mouse click and drag |
| Video |
| Compression |
H.265
/ H.264 / MJPEG |
| Image Resolution |
Main
stream: 1080p |
| Secondary stream: D1 |
| Frame Rate |
Main
stream: 1080p@30fps |
| Secondary stream: D1@30fps |
| Bitrate |
32kbps
~ 16Mbps |
| Bitrate Control |
VBR
/ CBR |
| Multi Stream |
Supported |
| Caption |
Date
and time / Alarm / Direction / Customized |
| Privacy Masking |
Up
to 4 zones |
| Motion Detection |
Up
to 4 zones |
| Video Freeze |
Supported |
| ROI |
Supported |
| Digital Noise Reduction |
3D
noise reduction |
| Digital Defog |
Supported |
| Image Flip |
Flip
/ Mirror |
| Network |
| Network Protocols |
TCP/IP,
UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x,
NAT, QoS, SMTP, IPv4, IPv6 (optional) |
| User Interface |
IPC
Control (IE, firefox, Chrome) |
| Max. User Access |
Max.
10 Users (includes 2 internal) |
| Application Programming |
Onvif
(Profile S, Profile G), API, CGI |
| Alarm |
| Alarm Triggers |
Network
disconnect |
| Alarm Events |
Alarm
report / Text overlay / Email notice |
| Interfaces |
| Aviation Port |
4-Pin
10/100M interface, 2-Pin Charge interface |
| Wi-Fi |
Built-in
Wi-Fi module |
| Memory Slot |
Built-in
Micro SD card (optional), up to 128GB |
| Environmental |
| Operating Temperature |
Power
supplied by built-in battary: -20°C ~ 60°C / -4°F ~ 140°F
Power supplied by DC: -40°C ~ 70°C / -40°F ~ 158°F |
| Operating Humidity |
10%
~ 95% |
| Protection Level |
IP66,
TVS 6000V lightning protection, surge protection and voltage transient
protection |
| Electrical |
| Power |
Built-in
10000mAH rechargeable lithium battery
Up to 8 hours continous working with battary
12V DC ± 10% |
| Power Consumption |
Max.
60W (IR on) |
| Mechanical |
| Magnet |
Built-in
super magnet |
| Weight |
2.5kg
/ 5.51lb (Gross Weight) |

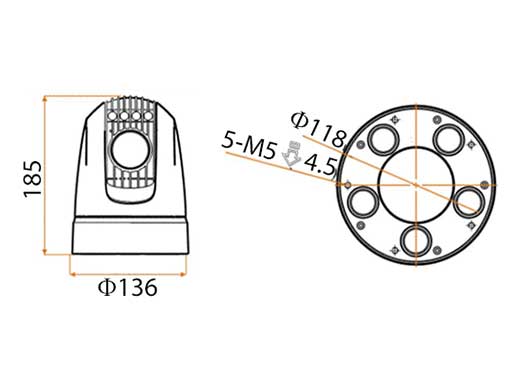

| Dimensions |
Φ136
× 185mm / Φ5.35’’ x 7.29’’ |
