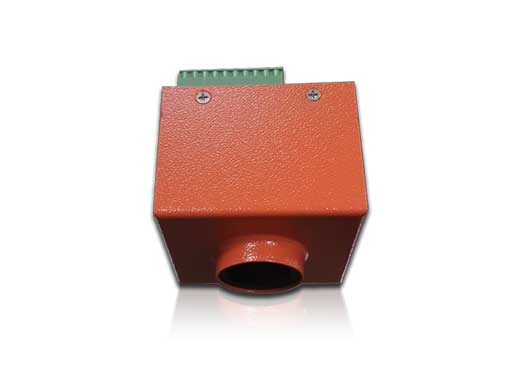

| Model |
UBVT-200P |
| Image
Sensor |
| Pixel Pitch |
2MP |
| Resolution |
1920
x 1080@30fps |
| Sensor Size |
1/2.8”
CMOS |
| Lowest Luminance |
0.001Lux(F=1.4) |
| Image Ratio |
16:09 |
| Varifocal Lens |
2.8mm
~12mm |
| Lens Por |
CS/C |
| System
Performance |
| Platform |
Linux |
| CPU |
Hi3516D |
| Image Output Format |
JPEG
compression output, Embedded Algorithm with YUV Format |
| Streaming Compression |
H.264 |
| Image Transmission |
FTP/network
server uploading |
| Transmission Protocol |
TCP/IP、DHCP、UPnP、FTP、SMTP、RTP、HTTP、UDP、ONVIF,etc. |
| Image Setting |
Saturability/sharpness/contrast/smart
DNR/WDR |
| Image Control |
auto
white balance/OSD superposition/signal synchronization |
| Storage |
SD(2/4/8/16/32GB) |
| External Function |
RTC
/WDT |
| Embedded Algorithm |
Standard
Korea plate number recognition algorithm, support video trigger, I/O trigger,
RS485 trigger. |
The detection max. speed ≤60km/h,
Recognition Accuracy ≥99% |

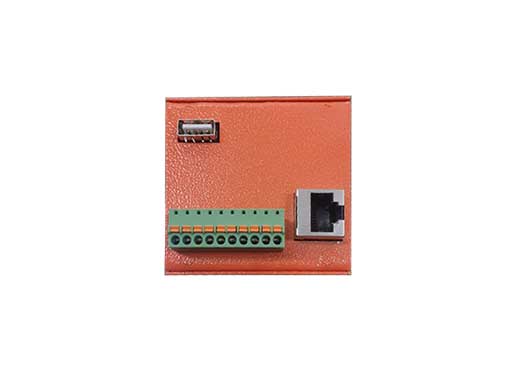

| Connection
Interface |
| BNC Output |
1ch
,analog video output |
| Opto-isolator Input |
1ch
,external trigger |
| Opto-isolator Output |
2ch,
backlight synchronous control,alarm output(optional) |
| RS485 |
1ch,
connect alarm sensor, loopcoil sensor, etc. |
| LED lamp |
1ch
LED lamp output |
| Network Port |
1
ch 10M/100M/100M auto adaptive |
| Other
Technical Parameter |
| Power Supply Input |
DC
12V 0.5A |
| Outline Dimension |
77mm
x 68mm x62mm |
| Power Consumption |
＜6
W |
| Working Temperature |
﹣30℃～+70℃ |
| Working Humidity |
＜95%(no
condensation) |

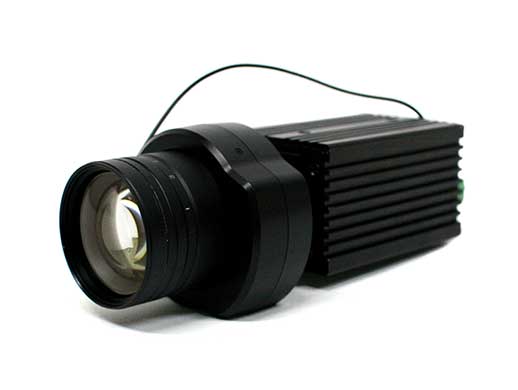

UBVT-CD300

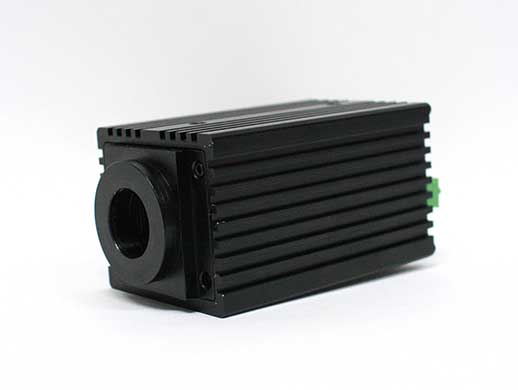

UBVT-CD500

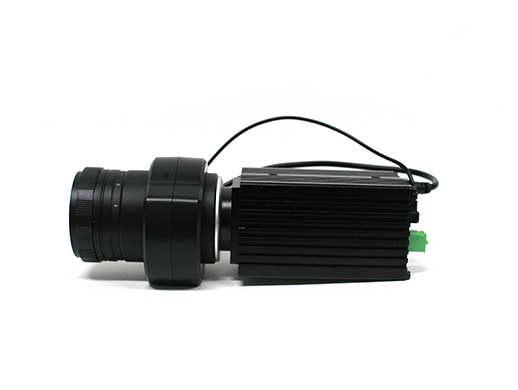

UBVT-CD900
